SemiBin2

Metagenomic Binning

SemiBin2 is a self-supervised deep learning method for metagenomic binning. It uses contrastive learning with data augmentation to train sample-specific models without requiring reference genomes, enabling accurate binning even for novel environments. [1]

How to Obtain Output Model File

Below is a brief workflow the team ran to obtain the output model examples we present on the tools page.

Input

Assembled contigs (FASTA) + sorted BAM alignment file(s)

Output

FASTA bins (.fa.gz) + TSV summary with per-bin metrics: filename, total bp, contig count, N50, L50

conda install -c bioconda semibin

Docker image: quay.io/biocontainers/semibin:2.2.1--pyhdfd78af_0

Sample 1 gut microbiome (3 samples from PRJNA795985, 1M read pairs each) co-assembled with Assembly and binned with SemiBin2 v2.2.1 in self-supervised mode, producing 38 bins.

  1. 1

    Download 3 samples from PRJNA795985

    for SRR in SRR17531757 SRR17531762 SRR17531772; do fastq-dump --split-files --gzip -X 1000000 --outdir reads/ $SRR; done

    Same co-assembly as VAMB — reuses the same reads. Downloads 1M read pairs per sample (~70 MB compressed each).

  2. 2

    Co-assemble all samples with MEGAHIT

    megahit -1 reads/SRR17531757_1.fastq.gz,reads/SRR17531762_1.fastq.gz,reads/SRR17531772_1.fastq.gz -2 reads/SRR17531757_2.fastq.gz,reads/SRR17531762_2.fastq.gz,reads/SRR17531772_2.fastq.gz -o assembly --min-contig-len 1500 -t 8 --presets meta-sensitive

    Produces 14,934 contigs (≥1,500 bp). If already done for VAMB, reuse the same assembly.

  3. 3

    Map each sample to contigs

    for SRR in SRR17531757 SRR17531762 SRR17531772; do minimap2 -ax sr -t 8 assembly/final.contigs.fa reads/${SRR}_1.fastq.gz reads/${SRR}_2.fastq.gz | samtools sort -@ 4 -o bams/${SRR}.sorted.bam && samtools index bams/${SRR}.sorted.bam; done
  4. 4

    Run SemiBin2 self-supervised binning

    SemiBin2 single_easy_bin -i assembly/final.contigs.fa -b bams/SRR17531757.sorted.bam bams/SRR17531762.sorted.bam bams/SRR17531772.sorted.bam -o semibin2_out --self-supervised -m 1500 -t 8

    Uses single_easy_bin with multiple BAMs for co-abundance. Self-supervised mode trains a sample-specific model (~38 min on CPU). Produces 38 bins after HMM-based reclustering.

Upload recluster_bins_info.tsv to IntMeta

Materials Used

Sample Output Files

Download the output files used in the tool page demos. You can upload these directly to IntMeta to explore the visualizations.

Single & Comparison

Group Analysis

Charts Reference

Detailed descriptions for all 22 visualizations generated by SemiBin2 in IntMeta.

quality-tier-distribution

quality-tier-distribution

Pie chart of bins classified into heuristic quality tiers based on assembly metrics: High (≥500 Kbp genome + N50 ≥10 Kbp), Medium (≥200 Kbp + N50 ≥5 Kbp), Low (rest). Note: these are assembly-metric heuristics, not MIMAG quality tiers — no completeness/contamination is assessed.

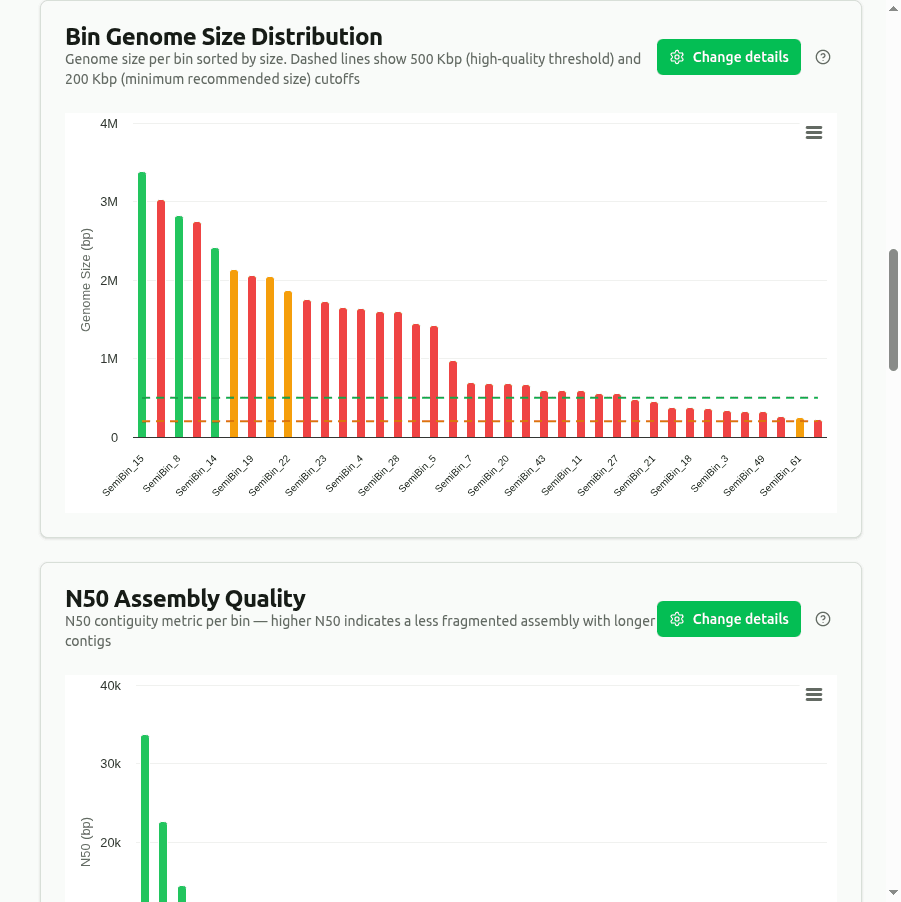

genome-size-distribution

genome-size-distribution

Bar chart of total_bp (genome size) per bin, sorted by size. Dashed reference lines at 500 Kbp (high-quality threshold) and 200 Kbp (minimum recommended size) help visually separate quality tiers.

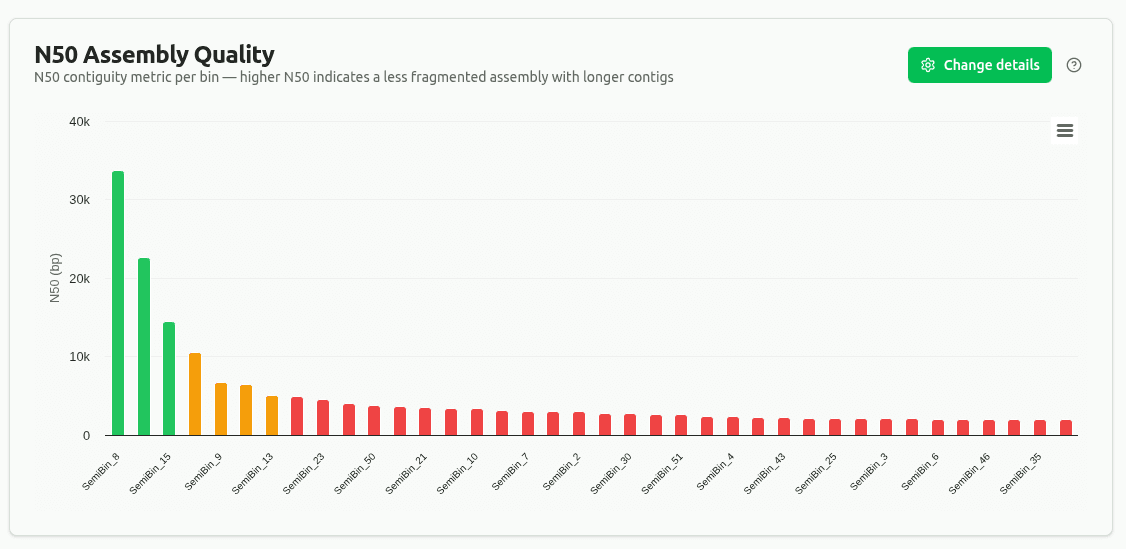

n50-assembly-quality

n50-assembly-quality

Bar chart of the N50 contiguity metric per bin — half of the bin's total base pairs are in contigs of this length or longer. Higher N50 means fewer, longer contigs and less fragmentation. Colored by quality tier.

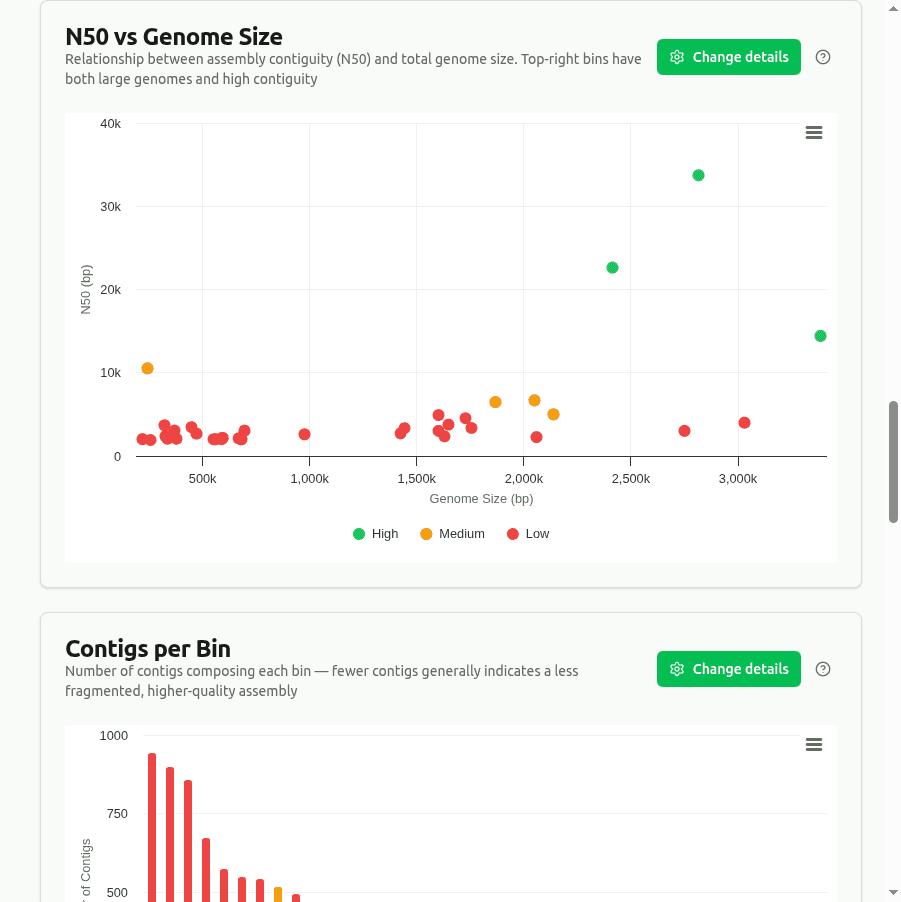

n50-vs-genome-size

n50-vs-genome-size

Scatter plot where X = total_bp (genome size) and Y = N50, colored by quality tier. Bins in the top-right have both large genomes and high contiguity — the best candidates for downstream analysis like gene annotation.

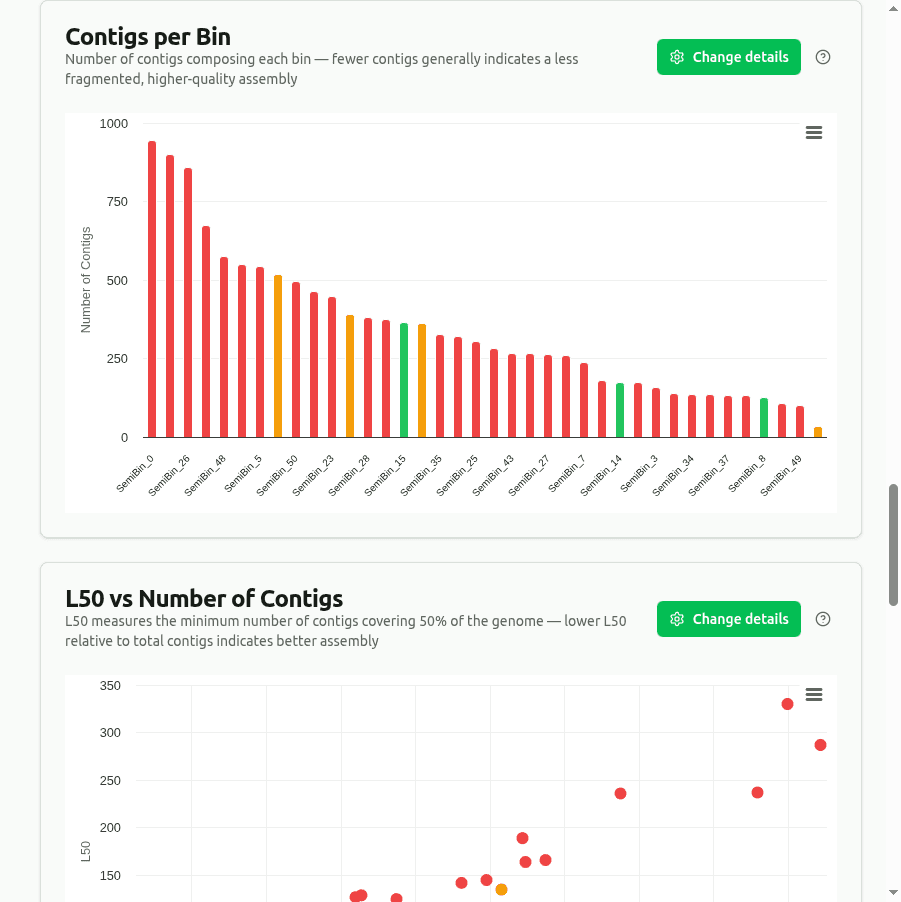

contigs-per-bin

contigs-per-bin

Bar chart of num_contigs per bin, colored by quality tier. Fewer contigs generally indicates a less fragmented, higher-quality assembly. Bins with very high contig counts may need further refinement.

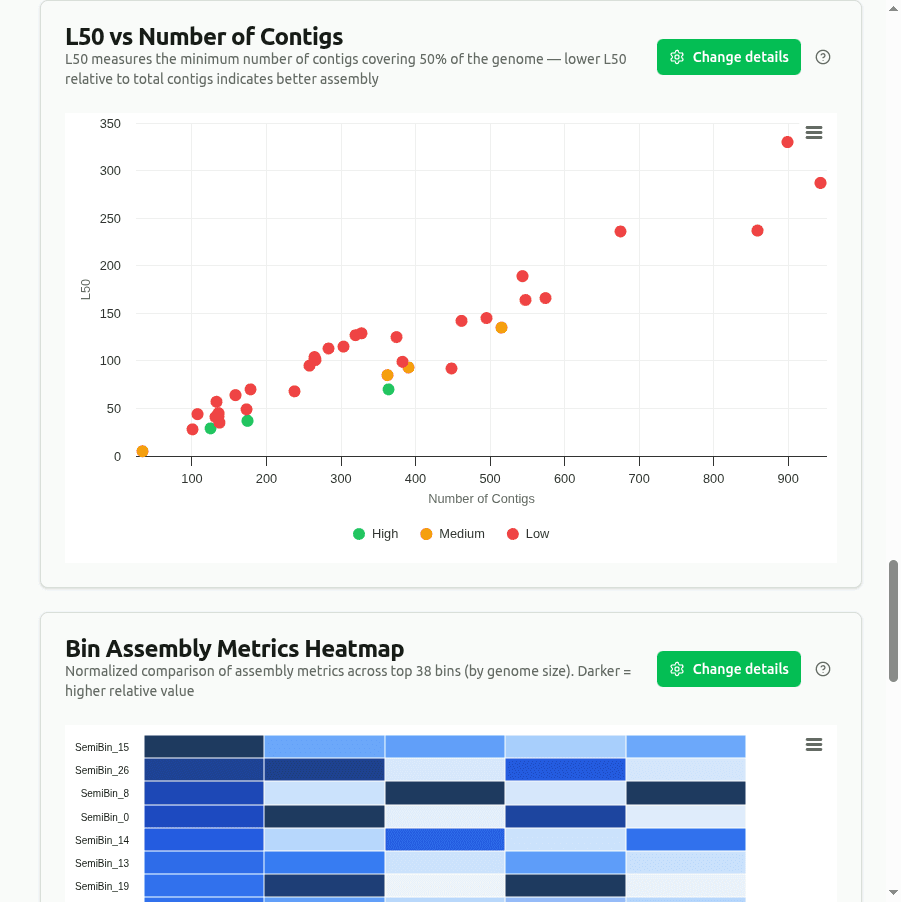

l50-vs-contigs

l50-vs-contigs

Scatter plot of L50 (the minimum number of contigs needed to cover 50% of the bin's genome) vs total num_contigs. Lower L50 relative to total contigs means the assembly is dominated by a few long contigs — better contiguity.

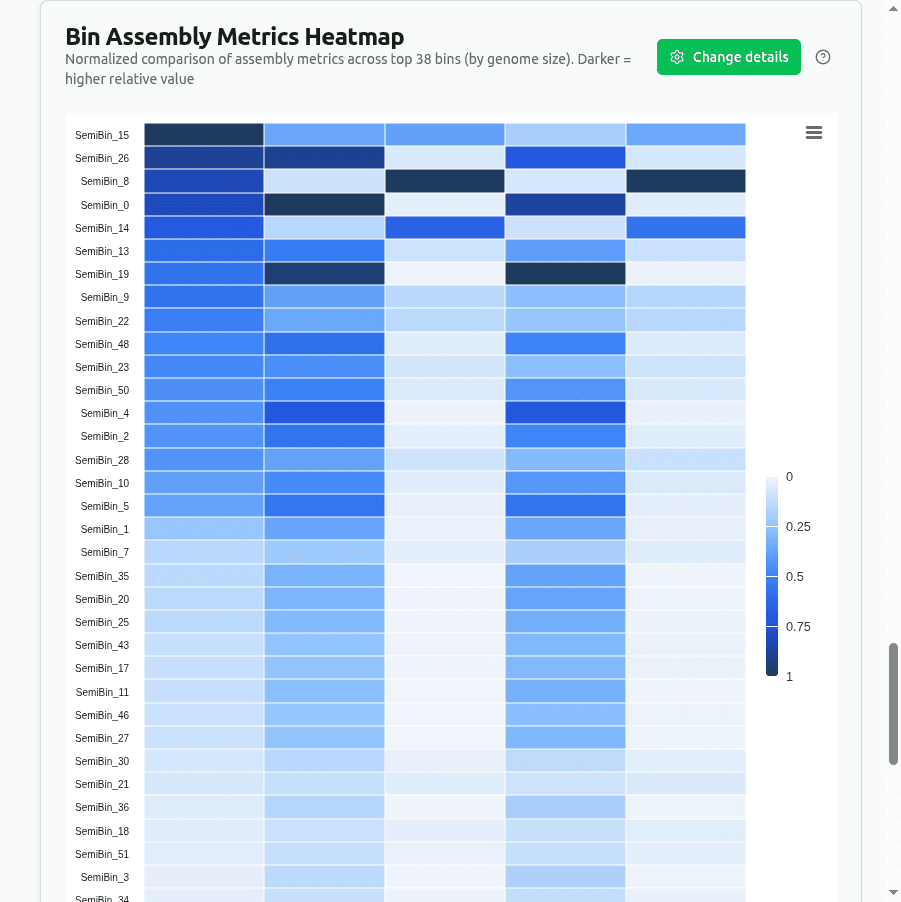

assembly-metrics-heatmap

assembly-metrics-heatmap

Heatmap of min-max normalized assembly metrics (total_bp, num_contigs, N50, L50, average contig length) across the top bins. Each metric is scaled 0–1 within its column; darker cells = higher relative values. Quick quality overview.

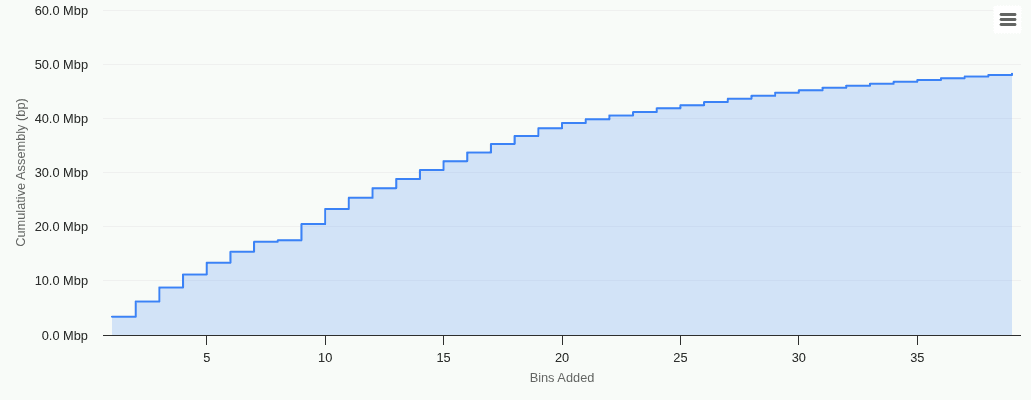

cumulative-genome-recovery

cumulative-genome-recovery

Cumulative step-area plot with bins sorted by quality tier (descending). Y-axis shows running total of genome size in bp. A steep initial rise indicates most assembled sequence comes from high-quality bins.

comp-quality-tiers

comp-quality-tiers

Grouped bar chart comparing the distribution of heuristic quality tiers (High / Medium / Low based on genome size and N50 thresholds) across samples. Shows which sample yielded more high-quality SemiBin2 bins.

comp-genome-size

comp-genome-size

Box plot or grouped bar chart comparing the genome size (total_bp) distribution of SemiBin2 bins across samples. Useful for detecting systematic differences in MAG recovery between samples.

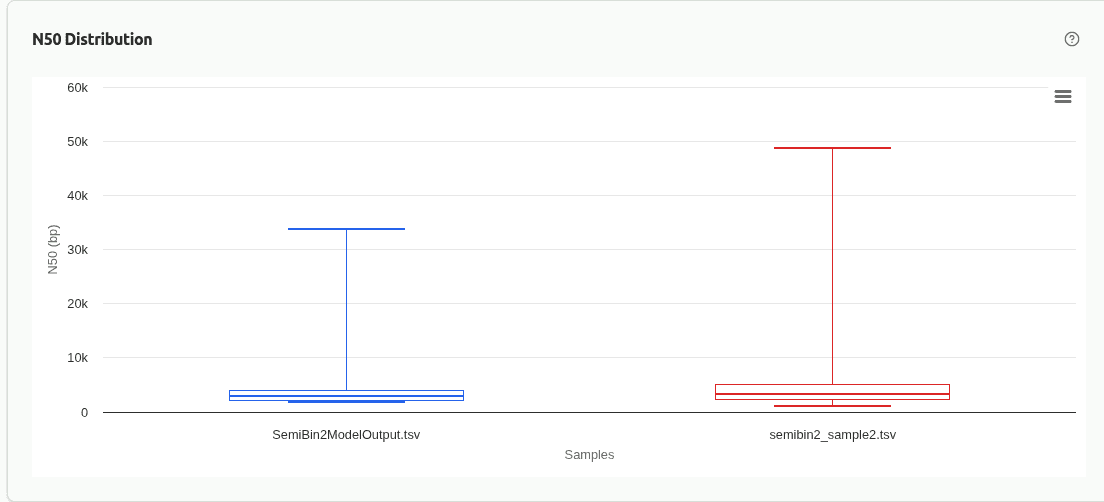

comp-n50-distribution

comp-n50-distribution

Box plot or bar chart comparing the N50 contiguity metric across samples. Higher N50 values indicate less fragmented assemblies — samples with consistently high N50 bins suggest better sequencing depth or simpler community composition.

comp-quality-pct

100% stacked bar chart showing the proportion of High / Medium / Low quality bins per sample. Normalizes for different bin counts, enabling direct comparison of binning quality. Standard in CAMI challenge benchmarks.

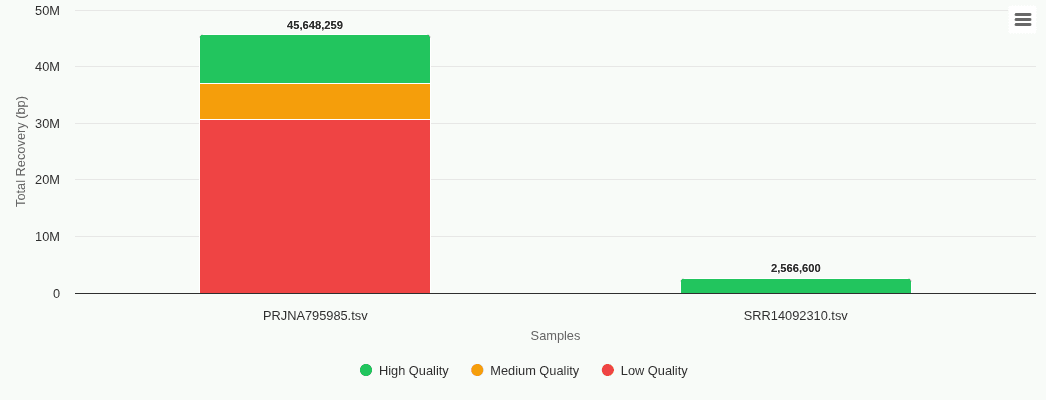

comp-total-recovery

comp-total-recovery

Stacked bar chart of total base pairs recovered per sample, split by quality tier. Measures actual data volume binned, complementing bin count. Used in SemiBin2 and CAMI evaluations.

comp-cdf

comp-cdf

Empirical cumulative distribution function (CDF) of bin sizes overlaid per sample. Reveals full distribution shape beyond boxplot summaries. Standard in CAMI benchmarking.

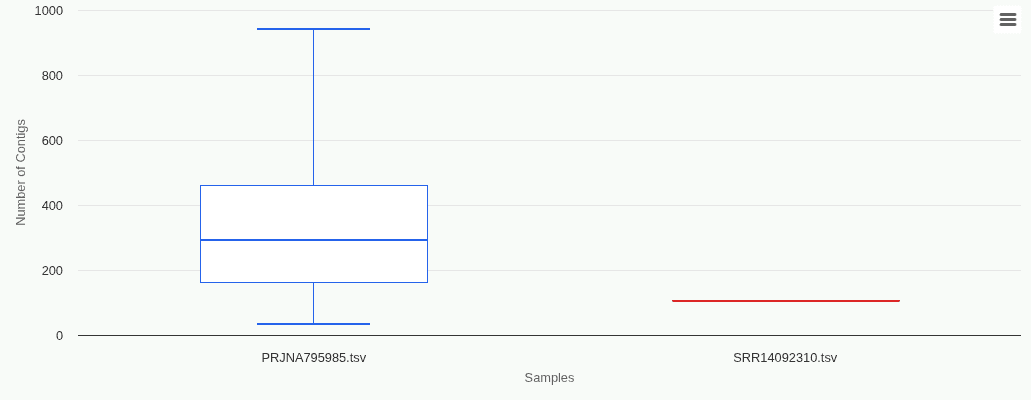

comp-contigs

comp-contigs

Boxplot of contig count per bin across samples. Higher contig counts indicate more fragmented assemblies, potentially from lower sequencing depth or complex community composition.

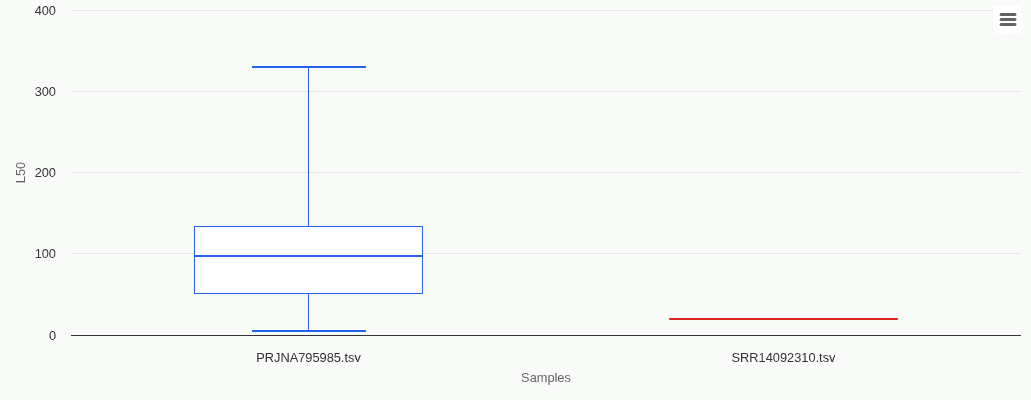

comp-l50

comp-l50

Boxplot of L50 (minimum number of contigs covering 50% of total bin length) across samples. Complementary to N50 — lower L50 means fewer, larger contigs.

binning-group-quality-tiers

binning-group-quality-tiers

Grouped bar chart of heuristic quality tier counts (High / Medium / Low) per experimental group, with Chi-square test. Tiers are based on assembly metrics: High (≥500 Kbp genome + N50 ≥10 Kbp), Medium (≥200 Kbp + N50 ≥5 Kbp), Low (rest). Note: these are assembly-metric heuristics, not MIMAG classifications — SemiBin2 output does not include completeness or contamination.

binning-group-metric-boxplots

binning-group-metric-boxplots

Boxplots comparing a selected metric (total bp, N50, L50, or average contig length) across groups. All individual bin values are pooled per group. Kruskal-Wallis test (≥3 groups) or Mann-Whitney U test (2 groups) assesses significance; pairwise comparisons use Benjamini-Hochberg FDR correction.

binning-group-recovery-rate

binning-group-recovery-rate

Grouped bar chart of mean bin count per sample at each quality tier (High, Medium, Low, Total) across groups, with ±1 SD error bars. Tests whether experimental groups differ in how many SemiBin2 bins they recover at each quality level.

binning-group-pca

binning-group-pca

PCA ordination of per-sample quality profiles (mean total bp, N50, L50, average contig length, %HQ, %MQ). Features are z-score standardized before decomposition. PERMANOVA on the Euclidean distance matrix tests whether group centroids differ significantly. 95% confidence ellipses are drawn for groups with ≥3 samples.

binning-group-cdf

binning-group-cdf

Overlaid empirical cumulative distribution functions (CDFs) of a selected metric across groups. The two-sample Kolmogorov-Smirnov test quantifies the maximum vertical distance between curves — significant D-statistics indicate the groups' metric distributions differ in location, spread, or shape.

binning-group-total-recovery

binning-group-total-recovery

Stacked bar chart of mean total base pairs recovered per group, split by quality tier. Error bars show ±1 SD. Measures actual data volume binned per group, complementing bin count and recovery rate charts.

References

[1]Pan, S., Zhao, X.-M. & Coelho, L.P. SemiBin2: self-supervised contrastive learning leads to better MAGs for short- and long-read sequencing. Bioinformatics 39(Suppl 1), i21–i29 (2023).DOI
[2]Anderson, M.J. A new method for non-parametric multivariate analysis of variance. Austral Ecology 26, 32–46 (2001).DOI
